PROFESSIONAL PUNCHDOWN TERMINAL
JACK PANELS
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

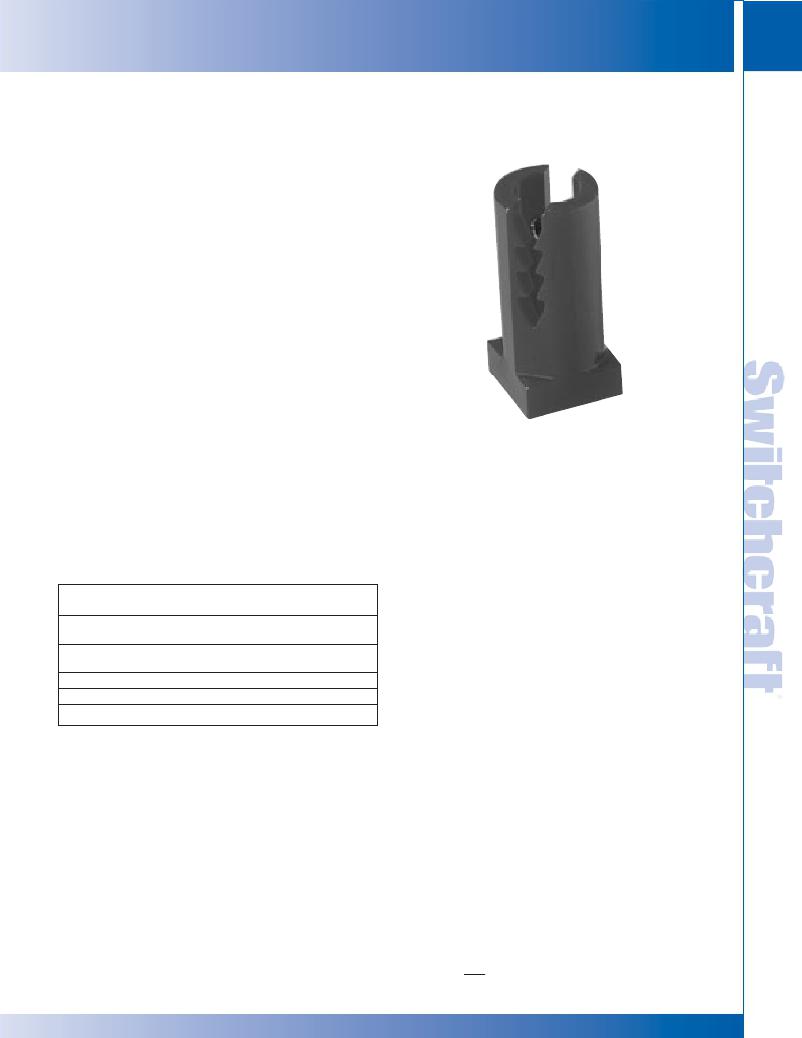

PROFESSIONAL PUNCHDOWN TERMINAL (PPT)
Our Patchbays Now Feature the New Professional
Punchdown Terminal (PPT) Our Patchbays Have Just
Rounded A New Corner
Actually, the corners we rounded belong to our patchbays’
revolutionary, new Professional Punchdown Terminal (PPT),
making it perfectly compatible with the industry standard. We
realized that achieving a new industry standard meant we
couldn’t cut any corners to get there.
The PPT design incorporates a split-barrel design and a more
rugged, thicker housing to minimize the impact of repeated
punchdowns. The split-barrel design eliminates the problems
associated with the old “V-shaped” terminal designs. The PPT
design distributes pressure evenly across both sides of the
terminated wire, causing improved wire retention plus more
reliable connections. The serrated teeth in the plastic housing
firmly grip the wires, which also greatly improves wire
retention. With the PPT, multiple wires can be terminated to a
single contact, and a wide range of wire gauges can be used.
Look for Switchcraft’s PPT in our MTP and TTP Series of
audio patchbays, and in our new Backpanel Series.
All Switchcraft audio patchbays incorporate heavy gauge
materials and our high quality nickel-plated, steel framed
jacks. Gold-plated, crossbar contacts come standard!
MATERIALS
Housing: Thermoplastic (UL 94V-0)
Contacts: High strength copper alloy, tin plated
Wire size: Accommodates #22, 24, or 26 AWG,
stranded or solid
Accessories
163
Part Number
K459
K460
PT1LA
PT2B
Description
PPT replacement kit consists of
15 of each color* (IDC/IDC)
PPT replacement kit consists of
15 of each color (IDC/wirewrap)
PPT impact punchdown tool
Replacement bit for PT1LA tool
*Colors consist of red, black, white, yellow, blue, and orange.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
